高速智能 安全穩定
CPU | LGA1151 socket 7th/6th gen Intel® Core? i7/i5/i3, Pentium® & Celeron® |
系統內存 | 2 x 288-pin DDR4-2400/2133/1866 DIMM, 最大支持32GB |
芯片組 | Intel® H110 |
BIOS | AMI BIOS |
SSD | N/A |
看門狗定時器 | 1~255 秒可編程設置 |
擴展接口 | 1 x PCIe x16 |
2 x PCIe x4 (僅支持 x1 signal) | |
4 x PCI | |
1 x PCI Express Mini Card | |
1 x SIM | |
鋰電池 | 3 V/220 mAH |
尺寸 | 305 x 244 mm ATX母板 |
板厚 | 1.6 mm |
工作溫度 | 0°C to +60°C (+32°F to +140°F) |
相對濕度 | 10% to 95% 相對濕度, 無冷凝 |
SATA | 3 x SATA-600; 1 x mSATA |
硬件監控 | 檢測 CPU/系統溫度、電壓并支持智能風扇控制 |
以太網 | 1x 10/100/1000 Mbps 以太網 Intel® i219-LM; |
支持 Wake-on-LAN, PXE Boot ROM | |
1 x 10/100/1000 Mbps 以太網 Intel® i210-AT; | |
支持 Wake-on-LAN, PXE Boot ROM | |
音頻 | 瑞昱HD 音頻解碼 Mic-in/Line-in/Line-out ALC662 |
USB | 4 x USB 3.0; 4 x USB 2.0 |
串口 | 4 x RS-232 (Internal box header) |
2 x RS-232/422/485 (COM 1: rear IO, COM 2: internal box header) | |
PS/2 Combo 接口 | 1 x PS/2 keyboard and mouse |
TPM | N/A |
SMBus | Yes |
Digital I/O | 8位in/out 可編程設置 |
圖形控制器 | Intel® HD Graphic |
顯存容量 | 共享系統內存 |
顯示接口 | 1 x DisplayPort |
1 x HDMI | |
1 x VGA |
Ordering Information | |
Standard | |

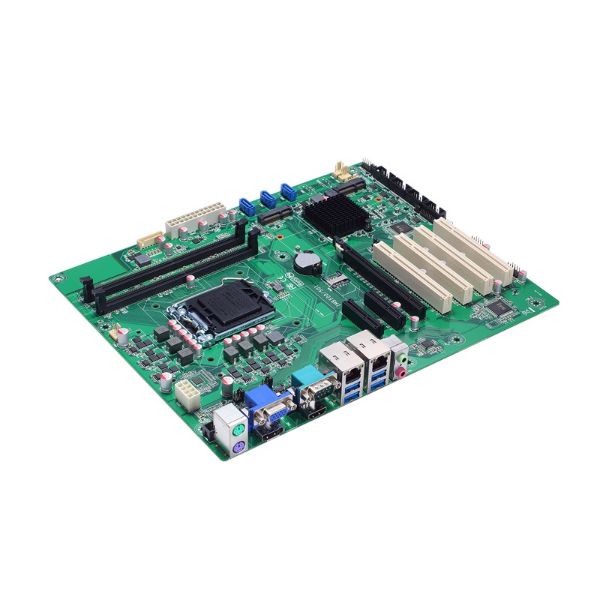

IMB501 (P/N: E38M501101) | ATX motherboard with LGA1151 socket 7th/6th gen Intel®Core? i7/i5/i3, Pentium® & Celeron® |
processor, Intel® H110, USB 3.0, SATA 3.0, 2 GbE LAN, VGA, DisplayPort, HDMI and mSATA | |
Optional | |
5938A808010E | 2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm |
5938A808020E | 2 x USB 2.0 cable with bracket, P=2.54 mm, L=400 mm |
593826A0000E | SATA signal cable/red, L=500 mm |
59384500100E | Audio cable with bracket, P=2.0 mm, L=450 mm |
59380402010E | 1 x COM port cable with bracket, P=2.54 mm, L=300 mm |
59380703000E | 2 x COM port cable with bracket, P=2.54 mm, L=300 mm |
Processor List | ||||
CPU | Speed | Cache | Cores | TDP |
Intel® Core? i7-7700 Processor | 3.6 GHz | 8 MB | 4 | 65 W |
Intel® Core? i7-7700T Processor | 2.9 GHz | 8 MB | 4 | 35 W |
Intel® Core? i7-6700K Processor | 4.0 GHz | 8 MB | 4 | 91 W |
Intel® Core? i7-6700 Processor | 3.4 GHz | 8 MB | 4 | 65 W |
Intel® Core? i7-6700TE Processor | 2.4 GHz | 8 MB | 4 | 35 W |
Intel® Core? i5-7500 Processor | 3.4 GHz | 6 MB | 4 | 65 W |
Intel® Core? i5-7500T Processor | 2.7 GHz | 6 MB | 4 | 35 W |
Intel® Core? i5-6500 Processor | 3.2 GHz | 6 MB | 4 | 65 W |
Intel® Core? i5-6500TE Processor | 2.3 GHz | 6 MB | 4 | 35 W |
Intel® Core? i3-7100 Processor | 3.9 GHz | 3 MB | 2 | 51 W |
Intel® Core? i3-7101TE Processor | 3.4 GHz | 3 MB | 2 | 35 W |
Intel® Core? i3-6100 Processor | 3.7 GHz | 3 MB | 2 | 51 W |
Intel® Core? i3-6100TE Processor | 2.7 GHz | 4 MB | 2 | 35 W |
Intel® Celeron® G4620 Processor | 3.7 GHz | 3 MB | 2 | 51 W |
Intel® Celeron® G4400 Processor | 3.3 GHz | 3 MB | 2 | 54W |
Intel® Celeron® G4400TE Processor | 2.4 GHz | 3 MB | 2 | 35W |
Intel® Celeron® G3950 Processor | 3.0 GHz | 2 MB | 2 | 51W |
Intel® Celeron® G3900TE Processor | 2.3 GHz | 2 MB | 2 | 35W |
